FGF & FWGF

FGF & FWGFModel: FGF & FWGF

DESCRIPTION:

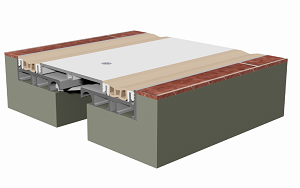

Recessed mounted twin gasketed floor covers with exposed aluminum center plate.

COLORS AND FINISHES:

Aluminum frame are in mill as standard finish.

Dual durometer gasket is available in black, gray, beige and white* colors

*Subject to minimum order quantity

OPTIONAL ACCESSORIES:

Moisture barrier,fire barrier

Technical Data

Description Download
Technical Data: FGF PDF

Typical Details

Model Description Downloads
DFGF1 Floor-Floor system for 1″ joint PDF DWG
DFGF2 Floor-Floor system for 2″ joint PDF DWG
FGF3 Floor-Floor system for 3″  joint PDF DWG
FGF4 Floor-Wall system for 4″ joint PDF DWG
DFWGF1 Floor-Wall system for 1″ joint PDF DWG
DFWGF2 Floor-Wall system for 2″ joint PDF DWG
FWGF3 Floor-Wall system for 3″ joint PDF DWG
FWGF4 Floor-Wall system for 4″ joint PDF DWG

Specifications

Description Download
Specifications for FGF series
 PDF DOC

Installation Instructions

Description Download
Installation Instructions: FGF
 PDF

APPLICATIONS:

  • Exposed SLIP-RESISTANT grit finish center plate
  • Higher movement capability of +/-50%
  • Highly durable twin dual durometer gasket
  • Internal baffles for maximum movement
  • Integral water stop design
  • Downward gasket contraction at maximum compression



KEY FEATURES:

  • Where hygiene is important
  • Wheeled equipment trafficable areas
  • Suitable for gap sizes of 1″ to 4″

MOVEMENT TABLE

[table id=FGF/]
