FGC & FWGC

FGC & FWGCModel: FGC & FWGC

DESCRIPTION:

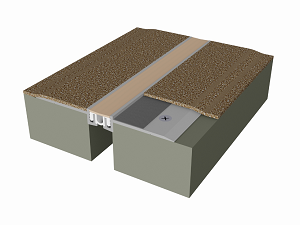

Surface mounted joint covers with exposed and recessed aluminum frames to take carpet or vinyl floor finish.

COLORS AND FINISHES:

Aluminum frame are in mill as standard finish.

Dual durometer gasket is available in black, gray, beige and white* colors

*Subject to minimum order quantity

OPTIONAL ACCESSORIES:

Moisture barrier,fire barrier

Technical Data

Description Download
Technical Data: FGC PDF

Typical Details

Model Description Downloads
FGC1 Floor-Floor system for 1″ joint PDF DWG
FGC2 Floor-Floor system for 2″ joint PDF DWG
FGC2.5 Floor-Floor system for 2.5″  joint PDF DWG
FWGC1 Floor-Wall system for 1″ joint PDF DWG
FWGC2 Floor-Wall system for 2″ joint PDF DWG
FWGC2.5 Floor-Wall system for 2.5″ joint PDF DWG

Specifications

Description Download
Specifications for FGC series
 PDF DOC

Installation Instructions

Description Download
Installation Instructions: FGC
 PDF

APPLICATIONS:

  • Designed for all types of floor finishes
  • Where hygiene is important
  • Wheeled equipment trafficable areas
  • Where minimal visual impact is preferred
  • Suitable for gap sizes of 1″,2″ & 2.5″



KEY FEATURES:

  • Highly durable dual durometer gasket
  • 550lbs (250kgs) point load rating
  • Internal baffles for maximum movement
  • Integral waterstop design
  • Downward gasket contraction at maximum compression
  • Central support for enhanced point load function for 2″ and above covers

MOVEMENT TABLE

[table id=FGC/]
