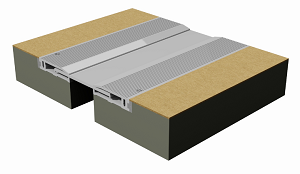

Model: FM-HD & FWM-HDDESCRIPTION:
Heavy Duty recess mounted all metal ,aluminum expansion joint cover, with sliding center plate.
MATERIAL FINISHES:
Aluminum frame are in mill as standard finish.
*Subject to minimum order quantity
OPTIONAL ACCESSORIES:
Moisture barrier,fire barrier
| Description | Download | |
|---|---|---|
| Technical Data: FM-HD | ||
| Model | Description | Downloads | |
|---|---|---|---|
| FM1HD | Floor-Floor system for 1″ joint x 1″depth | DWG | |
| FM2HD | Floor-Floor system for 1″ joint x 2″ depth | DWG | |
| FM3HD | Floor-Floor system for 1″ joint x 3″ depth | DWG | |
| FM4HD | Floor-Floor system for 1″ joint x 4″depth | DWG | |
| FWM1HD | Floor-Wall system for 1″ joint x 1″depth | DWG | |
| FWM2HD | Floor-Wall system for 1″ joint x 2″depth | DWG | |
| FWM3HD | Floor-Wall system for 1″ joint x 3″depth | DWG | |
| FWM4HD | Floor-Wall system for 1″ joint x 4″depth | DWG | |
| Description | Download | |
|---|---|---|
|
Installation Instructions: FM-HD
|
||
APPLICATIONS:
KEY FEATURES:
[table id=FM-HD/]
