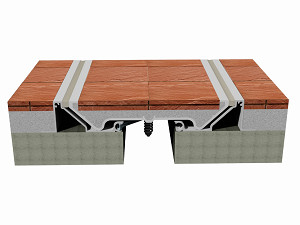

Model: FSRS & FWSRSDESCRIPTION:
Seismic expansion joint series are designed for interior and exterior applications where cover concealment is desired .
Center pan is designed to accommodate adjacent floor finish as infill for maximum concealment.
MATERIAL FINISHES:
All aluminum frames are in mill as standard finish
OPTIONAL ACCESSORIES:
Moisture barrier,fire barrier
| Description | Download | |
|---|---|---|
| Technical Data: FSRS | ||
| Model | Description | Downloads | |
|---|---|---|---|
| FSRS2 | Floor-Floor system for 1″ joint x 1″depth | DWG | |
| FSRS3 | Floor-Floor system for 1″ joint x 2″ depth | DWG | |
| FSRS4 | Floor-Floor system for 1″ joint x 3″ depth | DWG | |
| FSRS6 | Floor-Floor system for 1″ joint x 4″depth | DWG | |
| FSRS8 | Floor-Floor system for 1″ joint x 4″depth | DWG | |
| FWSRS2 | Floor-Wall system for 1″ joint x 1″depth | DWG | |
| FWSRS3 | Floor-Wall system for 1″ joint x 2″depth | DWG | |
| FWSRS4 | Floor-Wall system for 1″ joint x 3″depth | DWG | |
| FWSRS6 | Floor-Wall system for 1″ joint x 4″depth | DWG | |
| FWSRS8 | Floor-Wall system for 1″ joint x 4″depth | DWG | |
| Description | Download | |
|---|---|---|
|
Specifications for FSRS series
|
DOC | |
| Description | Download | |
|---|---|---|
|
Installation Instructions: FSRS
|
||
APPLICATIONS:
KEY FEATURES:
[table id=FSRS/]
