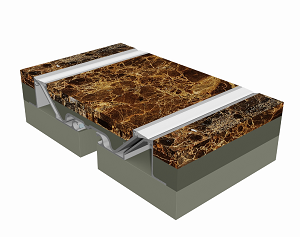

Model: FSR & FWSRDESCRIPTION:
Sealant-free seismic expansion joint series are designed for interior and exterior applications where cover concealment is desired .
Center pan is designed to accommodate adjacent floor finish as infill for maximum concealment.
MATERIAL FINISHES:
All aluminum frames are in mill as standard finish
OPTIONAL ACCESSORIES:
Moisture barrier,fire barrier
| Description | Download | |
|---|---|---|
| Technical Data: FSR | ||
| Model | Description | Downloads | |
|---|---|---|---|
| FSR2 | Floor-Floor system for 1″ joint x 1″depth | DWG | |
| FSR3 | Floor-Floor system for 1″ joint x 2″ depth | DWG | |
| FSR4 | Floor-Floor system for 1″ joint x 3″ depth | DWG | |
| FSR6 | Floor-Floor system for 1″ joint x 4″depth | DWG | |
| FSR8 | Floor-Floor system for 1″ joint x 4″depth | DWG | |
| FWSR2 | Floor-Wall system for 1″ joint x 1″depth | DWG | |
| FWSR3 | Floor-Wall system for 1″ joint x 2″depth | DWG | |
| FWSR4 | Floor-Wall system for 1″ joint x 3″depth | DWG | |
| FWSR6 | Floor-Wall system for 1″ joint x 4″depth | DWG | |
| FWSR8 | Floor-Wall system for 1″ joint x 4″depth | DWG | |
| Description | Download | |
|---|---|---|
|
Installation Instructions: FSR
|
||
APPLICATIONS:
KEY FEATURES:
[table id=FSR/]
