XWMS & XWCMS

XWMS & XWCMSModel: XWMS & XWCMS

DESCRIPTION:

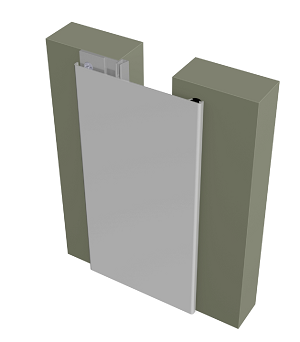

Surface mounted aluminum wall and ceiling ,expansion joint cover ,with concealed fixing mechanism and vapor barrier.

MATERIAL FINISHES:

Exposed aluminum sections are clear anodized as standard, or can be powder coating . All other sections are supplied mill finished.



Technical Data

Description Download
Technical Data: XWMS PDF

Typical Details

Model Description Downloads
XWMS1 Exterior Wall-Wall system for 1″ joint PDF DWG
XWMS2 Exterior Wall-Wall system for 2″ joint PDF DWG
XWMS3 Exterior Wall-Wall system for 3″ joint PDF DWG
XWMS4 Exterior Wall-Wall system for 4″ joint PDF DWG
XWCMS1 Exterior Wall-Wall Corner system for 1″ joint PDF DWG
XWCMS2 Exterior Wall-Wall Corner system for 2″ joint PDF DWG
XWCMS3 Exterior Wall-Wall Corner system for 3″ joint PDF DWG
XWCMS4 Exterior Wall-Wall Corner system for 4″ joint PDF DWG

Specifications

Description Download
Specifications for XWMS series
 PDF DOC

Installation Instructions

Description Download
Installation Instructions: XWM
 PDF

APPLICATIONS:

  • Where flush covers cannot be mounted into the wall structure
  • For all types of exterior wall finishes
  • Available for gap sizes of 1″, 2″, 3″ & 4″



KEY FEATURES:

  • Snap-in clip mechanism.
  • Movement : +/- 100%
  • Tamper-proof system
  • Can be powder coated to match the adjacent wall finish

MOVEMENT TABLE
